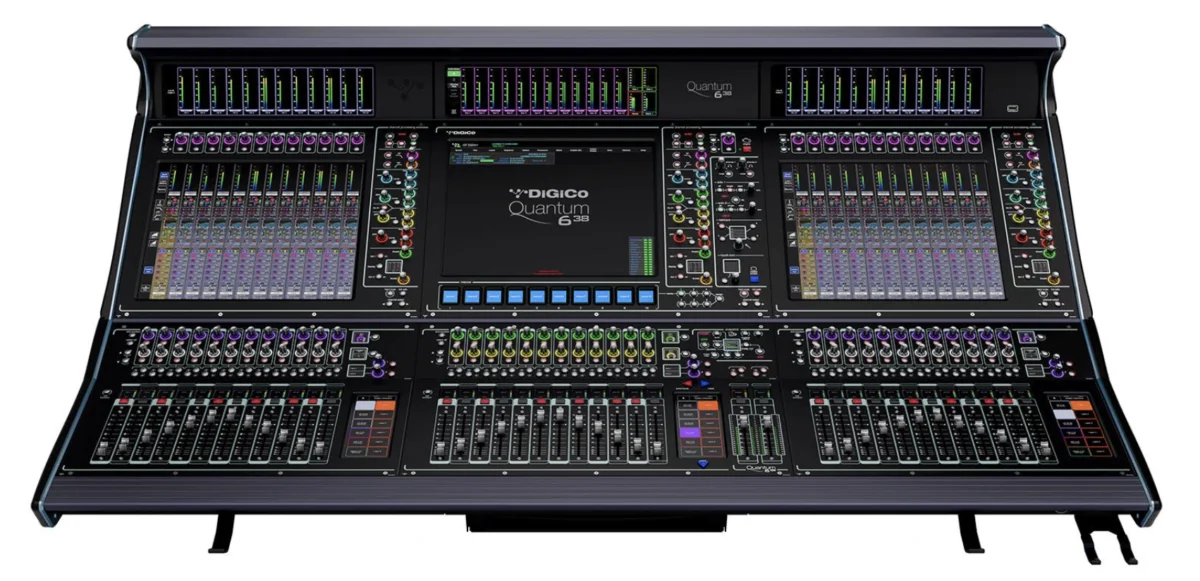

LONDON — In a major development for the live production and professional audio industries, DiGiCo has officially introduced its newest flagship digital mixing console, the Quantum638. Designed to bridge the gap between legendary console architecture and cutting-edge processing power, the Quantum638 synthesizes the best operational elements of DiGiCo’s iconic SD7 and SD5 platforms while supercharging them with the company’s advanced Quantum technology.
Available in both standard live production formats and a specialized theatrical configuration—the Quantum638T—the new desk is engineered to meet the punishing demands of modern arena tours, large-scale festivals, houses of worship, and complex West End and Broadway musical productions.
Main Facts: What You Need to Know About the Quantum638
The Quantum638 is a comprehensive, high-capacity mixing solution designed for audio engineers who refuse to compromise between channel count, processing flexibility, and physical footprint.
At its core, the console boasts an impressive specifications sheet:
- Channel and Bus Capacity: 256 input channels, 128 aux/sub-group buses, and a 48×48 processed matrix.
- Master Bus Architecture: Full support for LR, LCR, LCRS, and 5.1 Master buses, alongside 36 VCA-style or mute group-style control group channels, two solo buses, and a robust internal effects rack.
- Physical Surface: Three expansive 17-inch daylight-viewable touchscreens, 38 motorized faders arranged logically across three distinct sections, two dedicated Master faders, and enhanced Macro controls.
- Auxiliary Displays: Three 6.8-inch TFT displays, assignable rotary encoders, dual headphone outputs, and an intuitive InfoBar for monitoring snapshots, timecode, and overall system status.
- Redundancy and Power: Available in both single- and dual-engine configurations (with the dual engine capable of operating in single-engine mode for flexible redundancy management), complete with dual DMI card slots and hot-swappable power supplies.
- Physical Dimensions: Measures 1,555 x 957 x 535 mm (61.2 x 37.7 x 21.1 inches) and tips the scales at 93 kg (205 lbs).
Chronology and Development: Merging Past Legacies with Future Tech
The genesis of the Quantum638 lies in DiGiCo’s continuous dialogue with top-tier audio engineers, system designers, and production managers. For over two decades, DiGiCo’s SD7 and SD5 consoles have served as the undisputed workhorses of global touring and high-end theatre. However, as productions have grown larger, more immersive, and increasingly reliant on complex digital networking, the industry demanded a console that could deliver the familiar, tactile workspace of the SD series while incorporating the massive, latency-free processing capabilities of the newer Quantum platform.
The Evolution of the Q6 Concept
- The SD Legacy: Sound engineers worldwide grew accustomed to the ergonomic layouts of the SD7 and SD5. Maintaining muscle memory and familiar workflows was deemed critical for any new design to prevent operational errors in high-pressure live environments.
- The Quantum Breakthrough: The introduction of DiGiCo’s Quantum processing engine unlocked unprecedented digital headroom, Nodal Processing, and Mustard/Spice Rack processing.
- The Synthesis: Engineers at DiGiCo embarked on a mission to merge these two worlds. The goal was to pack the power of the Quantum engine into a physical footprint comparable to the legendary SD7, resulting in a desk that feels instantly familiar on day one while offering next-generation performance.
- The Theatrical Evolution (The "T" Series): Recognizing the unique, complex programming demands of theatrical sound design—where cast changes, automated cue tracking, and rapid scene transitions rule the day—DiGiCo developed the optional Quantum638T software package in parallel with the core console.
Supporting Data: Deep Dive into Processing, Connectivity, and Software
The Quantum638 is far more than a surface upgrade; it is an integrated processing powerhouse. Under the hood, DiGiCo has loaded the console with its most advanced audio tools.
Advanced Processing Engines
- Nodal Processing: The console features 128 full instances of Nodal Processing, allowing engineers to apply processing at any node of the auxiliary or group routing without sacrificing channel strips.
- Mustard Processing: Users benefit from 64 insertable Mustard Processing strips, offering vintage-modeled channel compression, analog-style filtering, and saturation algorithms.
- Spice Rack: 16 dedicated Spice Rack slots provide access to pristine, transient-shaping and multi-band compression tools.
- Effects and EQ: An internal effects rack hosts 34 effects, expandable up to 48 simultaneous stereo effects (including world-class reverbs, delays, chorus, pitch-shifting, and spatial enhancers), complemented by an additional bank of 32 32-band graphic EQs.
- True Solo: Advanced monitoring functionality allows engineers to audition signals safely and accurately under pressure.
Connectivity and Networking
The Quantum638 leaves no stone unturned when it comes to input/output versatility and system integration:
- Local I/O: Features 32-bit mic/line inputs, eight 32-bit line outputs, AES/EBU I/O, GPI/GPO, MIDI, and SMPTE LTC.
- Network & IT: Four switched Ethernet ports and a built-in Fourier Interface Card ensure seamless integration with modern IP networks and compatibility with Fourier Audio’s transform.engine platform for running VST3 plugins natively.
- MADI and Dante: Eight sets of MADI I/O alongside onboard Dante connectivity guarantee compatibility with existing stage boxes and third-party audio networks.
- Optocore Backbone: Each engine includes a MultiMode Optocore interface supporting 504 additional audio paths at 48 or 96 kHz, with an optional second Optocore loop available to scale system capacity drastically for massive stadium tours.
The Theatrical "T" Software Extension
For theatrical applications—spanning Broadway musicals, West End plays, and large-scale touring theatrical productions—the optional Quantum638T package transforms the console into a specialized automation machine. It includes:
- Auto Update: Automatically propagates changes made to a specific cue across subsequent scenes, saving countless hours of programming time.
- Aliases: Allows engineers to manage multiple actors sharing a single wireless microphone or character role with distinct EQ and processing profiles.
- Players Management: Streamlines the assignment and tracking of cast members throughout a production.
- Advanced CG Programming Tools: Enhanced control group programming tailored to fast-paced theatrical workflows.
- Matrix Nodal Delays: Essential for precise time-alignment in complex acoustic venue spaces.
Official Responses and Industry Commentary
DiGiCo Managing Director Austin Freshwater emphasized that the Quantum638 was conceptualized as the ultimate bridge between historical reliability and modern technical demands.
"We took the best elements of our time-tested SD7 and SD5, and combined them with the latest Quantum tech to create the ultimate Q6," said Freshwater. "With its compact footprint and familiar operator-focused layout, the Quantum6 38 is an ideal work surface for theatrical tours and installs, as well as live concerts, festivals, and houses of worship. Built for both today’s productions and tomorrow’s demands, our newest Quantum console provides a platform that feels familiar on day one, reducing operational effort under pressure and delivering modern capabilities without compromising trusted workflows."
Industry analysts and early beta testers have echoed Freshwater’s sentiments, noting that the physical layout directly addresses a common pain point in modern audio production: the need for massive channel counts and complex processing without requiring a mixing desk that consumes an entire front-of-house riser.
Implications for the Live Sound and Theatrical Markets
The release of the Quantum638 is expected to significantly shift purchasing and rider trends across multiple sectors of the professional audio industry.
1. Touring and Festival Production
In the festival market, where quick changeovers and multiple visiting engineers are the norm, the Quantum638 hits a "sweet spot." Because the surface layout, macro controls, and touchscreen architecture mirror the industry-standard SD series, guest engineers can walk up to the desk at a festival and begin mixing immediately without a steep learning curve. At the same time, the inclusion of robust dual-engine redundancy ensures zero downtime during high-stakes performances.
2. Theatrical Sound Design
The market for high-end theatrical audio has long sought a console that balances immense cue-automation capabilities with transparent, high-resolution audio paths. With the Quantum638T package, DiGiCo provides a formidable alternative to older legacy systems. Features like Auto Update and Aliases are considered holy-grail workflows for sound designers managing productions with dozens of wireless bodypacks and intricate spatial audio requirements.
3. Houses of Worship and Fixed Installations
Modern worship facilities increasingly demand concert-level production values, multi-channel immersive mixing (such as Dolby Atmos or custom spatial setups), and reliable, user-friendly operation for volunteer or staff engineers. The Quantum638’s high channel count, flexible bus architecture, and pristine 32-bit conversion make it an attractive long-term investment for mega-churches seeking to future-proof their audio infrastructure.
Summary
With the Quantum638, DiGiCo has successfully reinforced its market leadership. By combining the beloved physical ergonomics of the SD7 and SD5 with state-of-the-art Quantum processing, Nodal capabilities, and specialized theatrical software, the company has delivered a future-proof mixing console that respects the past while boldly defining the future of live sound.
